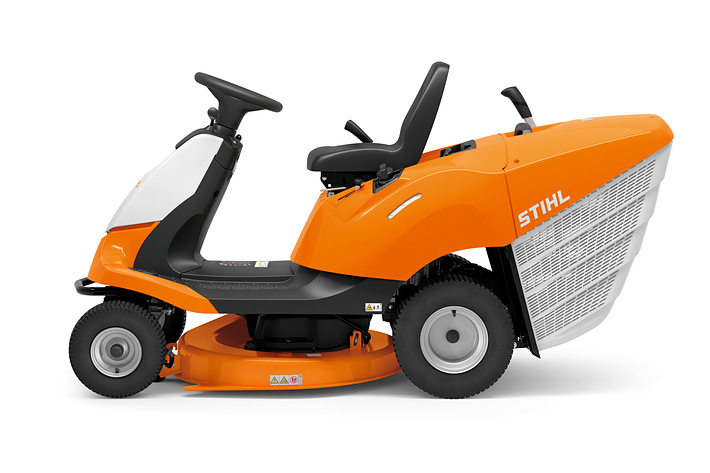

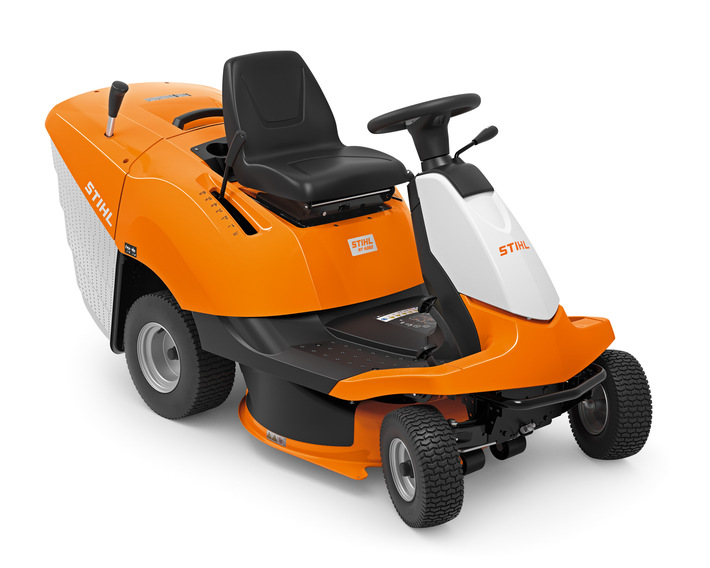

Turf tyres
The large turf tyres of the STIHL ride-on mower help to protect the lawn. Thanks to their rounded tyre design, they reduce the formation of driving tracks.
Trailer hitch
The integral trailer hitch enables easy mounting of attachments such as the convenient PICK UP 300 tilting trailer, which can also be used as a wheel barrow.
Central cutting height adjustment
The lever to adjust the deck cutting height is located directly next to the driver’s seat. It enables individual adjustment of the cutting height in up to eight steps.
Robust frame
The robust frame construction gives the mower a high level of stability and driving comfort. The STIHL ride-on mowers compact design is great for using attachments such as the AGW 098 garden roller or PICK 300 tilting trailer.
Spring-loaded and adjustable seat
The most comfortable seat position can be set without the use of tools. This allows individual adjustment of the driver’s seat to almost any body size.
Small turning circle
Thanks to their compact housing design, STIHL ride-on mowers are suitable for narrow passages and lawns with lots or trees and obstacles. The unobstructed forward view makes it easier to manoeuvre the mower.
Low step
The low step on the STIHL ride-on mowers provides ample legroom and allows for comfortable access to the seat.
Catching management system
The catching system guides the grass blades across the entire working width of the mowing deck. It helps to guide the grass towards the mowing blades for a more efficient cut.
Grass catcher box with bow handle
The polymer grass catcher box can be emptied effortlessly from the driver’s seat simply using the curved shaped handle. The “dumper” design ensures optimum filling and residual-free emptying of the grass catcher box. Cleaning the catcher box is also easy.
Single pedal drive
With the STIHL single pedal drive, the direction of travel can be conveniently switched between forward and reverse gear using a hand lever for quick manoeuvring. The pressure-sensitive pedal allows for precise control of the speed between top speed and standstill. The separate brake pedal ensures immediate stopping.
Electromagnetic blade clutch (EBC)
The mowing deck can be easily engaged and disengaged by a switch situated on the control panel
Technical data | Value |
---|---|
Lawns m² | up to 4.000 |
Cutting width cm | 80 |
Cutting height mm | 35-90 |
Grass catcher box l | 250 |
Tank capacity l | 6 |
Engine type | STIHL EVC 4.000 |
Nominal output at working speed kW/hp | 8.2 kW / 11.1 PS |
Displacement cm³ | 452 |
Working speed rpm | 2.700 |
Machine Length cm | 213 |
Machine Width cm | 90 |
Machine Height cm | 117-118 |
Weight kg | 202-203 |
Sound pressure level dB(A) | 86 |
Turning radius m | 0.9 |
Guaranteed sound power level LWAd [dB(A)] dB(A) | 100 |
Uncertainty factor, sound pressure level KpA dB(A) | 2 |
Vibration value ahw Seat m/s² | 0.6 |
Uncertainty factor K Seat m/s² | 0.3 |
Vibration value ahw m/s² | 3 |
Uncertainty factor K Wheel m/s² | 1.5 |
